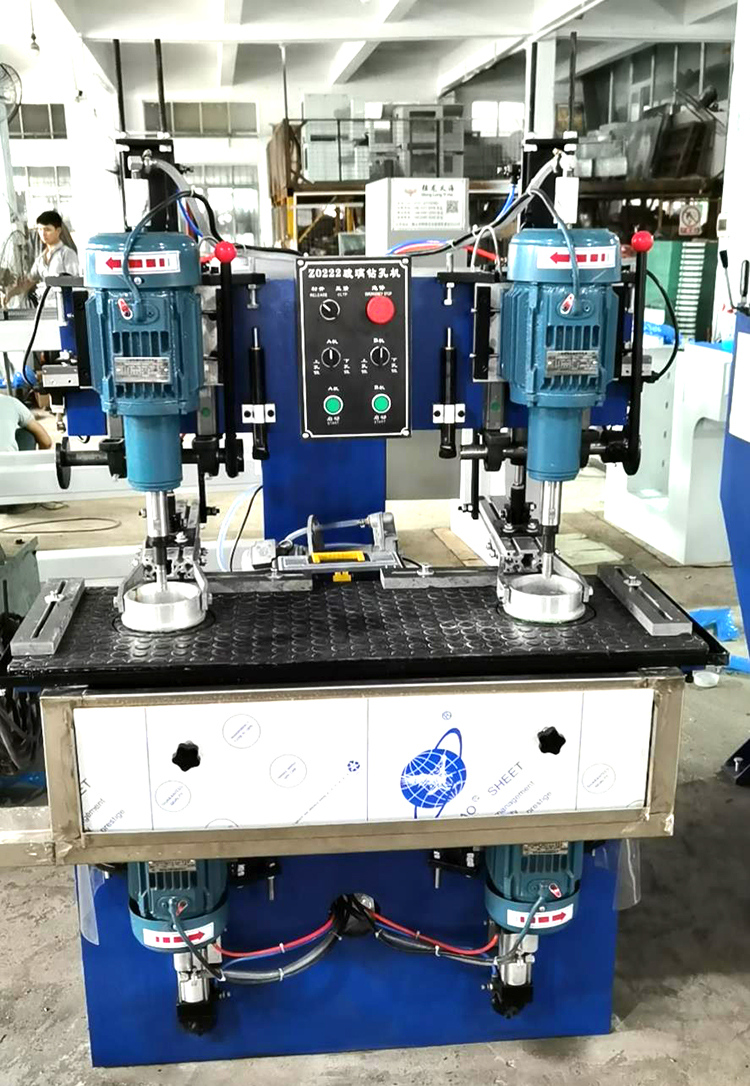

產品介紹：
1.機架結構均采用優質加厚的45號鋼板焊接而成經過高溫退火處理，結構性能穩定，能承受較大加工負荷。工作臺采用優質鑄件材料，經過高溫退火處理結構性能穩定；
2.活動坐標定位，孔距精度高；
3.鉆削速度快，鉆孔質量高。
1. Adopt high quality thicken the frame structure of 45 # steel plate welded together by high temperature annealing treatment, the structure of stable performance and can bear larger processing load. Table is made of high quality casting material, after high temperature annealing treatment structure stable performance;
2. PLC control, hydraulic buffer technology;
3. Coordinates, pitch high precision;
4. The drilling speed and drilling quality.
主要性能參數：
型號/model： QLZ-0222-2
玻璃厚度/The thickness of the glass：3-20mm
鉆孔直徑/The hole diameter:5-60mm
加工最大玻璃尺寸/The largest glass size:1500*1500mm
整機功率/The engine power：5kw
電壓/voltage：380V/50HZ
整機尺寸/The whole machine size：3000*2700*1700mm
整機重量/The weight：1500kg
